There are two different view options in which you can create Sketches: The Task Environment and the Simple Sketch Mode.
While in Task Environment your view is automatically adjusted to the plane you want to sketch on, the Simple Sketch Mode keeps the current perspective.
The Task Environment-Mode is suitable for creating and editing sketches, since it offers a better overview. Additionally created elements are hidden in this mode, which makes the sketch more visible. Also, NX's icon bars are adjusted for sketch mode.
When changing dimensioning/measurements you can also use simple sketch mode, which you can access by double-clicking the sketch within the Part Navigator.
Create a Model with the name Sketcher according to the naming convention.
Choose Sketch
.
Define the XY-Plane as your sketch plane by clicking it and confirming by clicking OK. If you accidentally rotate your view away from your sketch plane, you can re-adjust your view by clicking View -> Orient View to Sketch.
Now choose

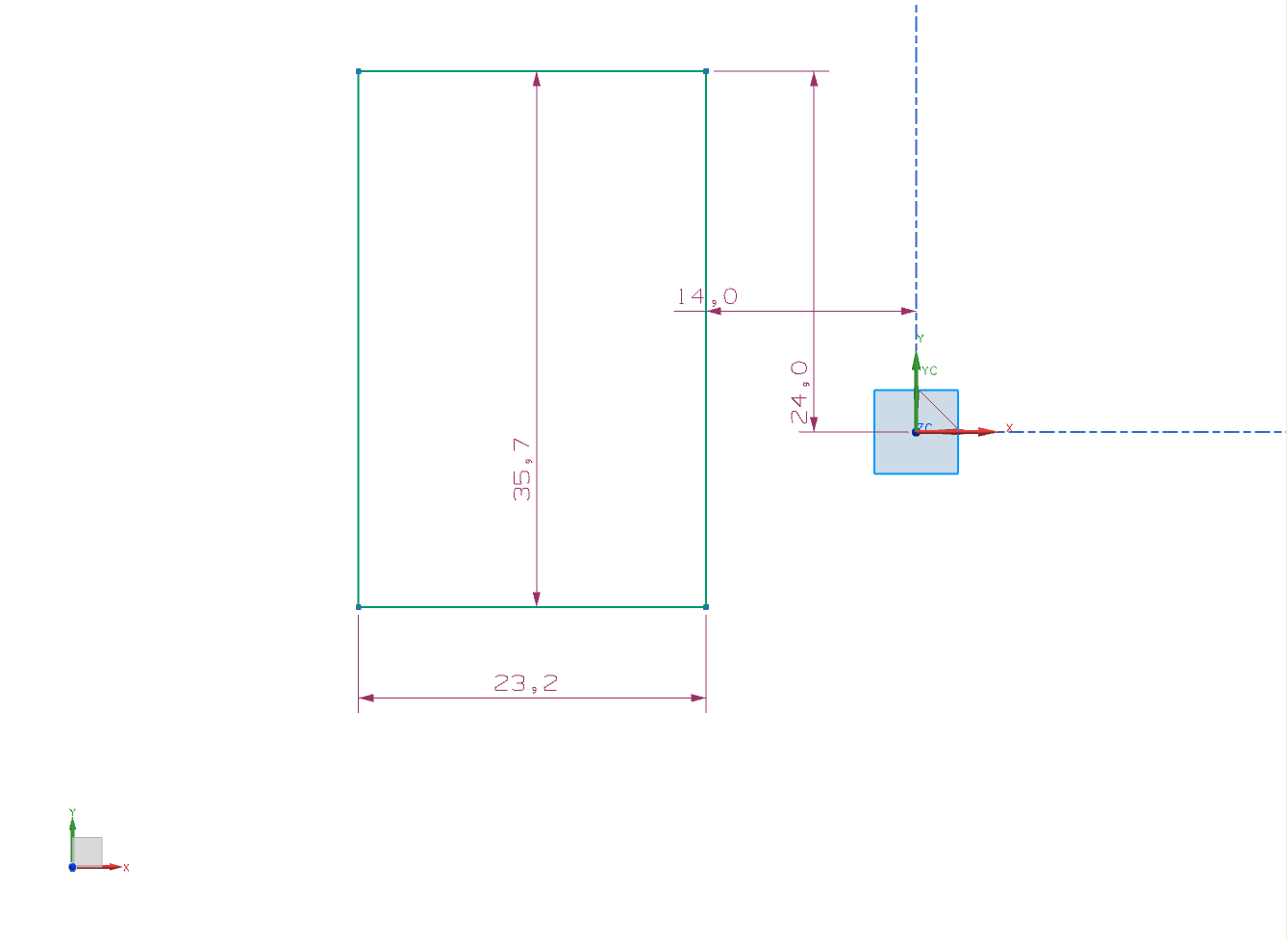

and draw a rectangle somewhere on your sketch plane. (figure "Sketch
rectangle"). Measurements are automatically created, so-called Auto
Dimensions (displayed purple or grey). You should now dimension the sketch
on your own and replace Auto Dimensions. Measurements you created are
displayed blue.
To do so, click "Geometric Constraints"
(refer
figure: "Sketch bar") and choose the desired constraint, in this case
("Collinear"). Now click the Y-Axis , a green check appears in the

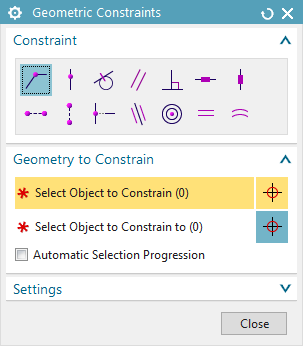

window Geometric Constraints (figure
"Geometric Constraints"). To select objects that you want to constrain to your
first selection, choose "select object to constrain to" (you can also do this by
pressing CMB) and, in this case, select the right side of your
rectangle.

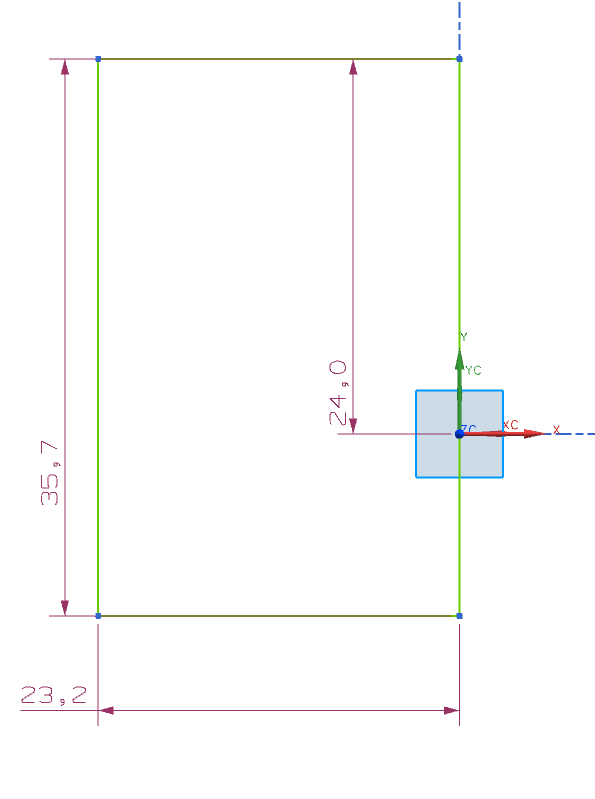

Subsequently, one Auto
Dimension less is displayed, since you replaced it with the function (figure
"Sketch").
Disabling Auto Dimensions
You can disable the function Auto Dimension by clicking Continuous Auto
Dimensioning
within the sketch bar. Please note, that it is
automatically turned on when restarting NX or opening a new item.
| Attention: |
|
The constraint Make Symmetric
is displayed separately within the sketch
bar (refer figure "Sketch bar"). To undertand its
function complete the following steps: Add two random, not identical, lines to
your sketch, that start in the point of origin. Click Make
Symmetric and select one line

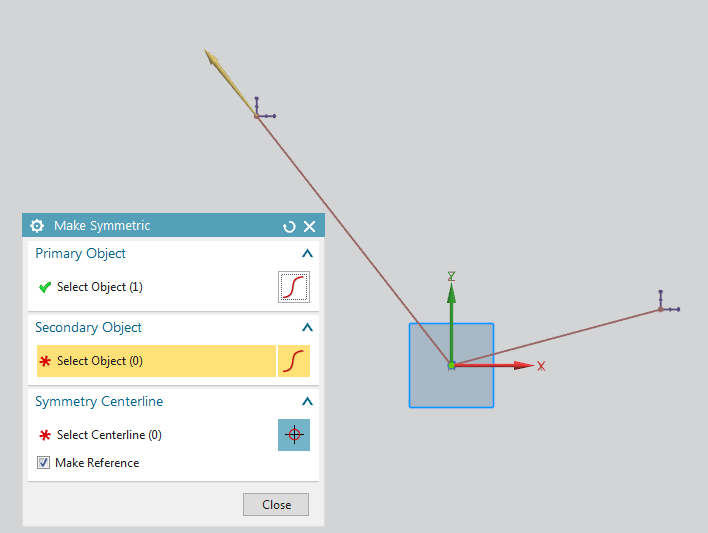

(refer figure: "Make Symmetric before"), then
the other line, and then a symmetry center line, in this case the
Y-Axis. The new line is symmetrically adjusted to the other, or

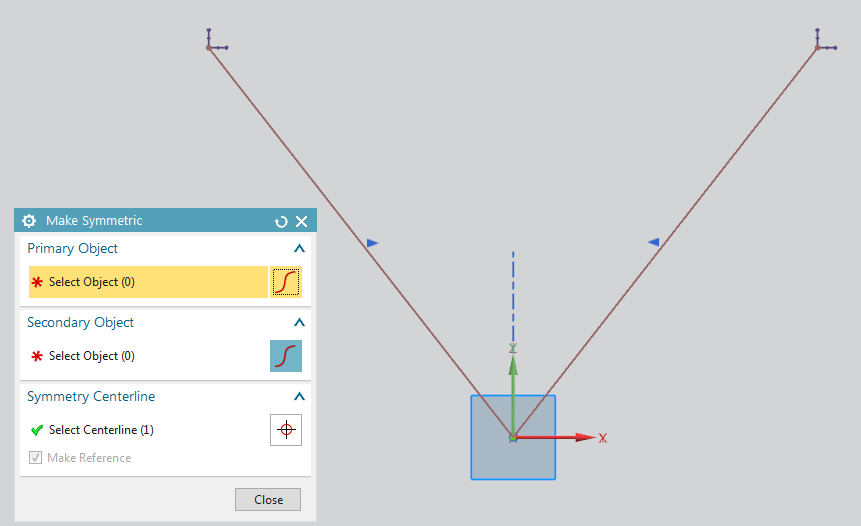

mirrored across the center line. (refer figure: "Make Symmetric
after").
Now click Finish Sketch
to exit sketch mode.

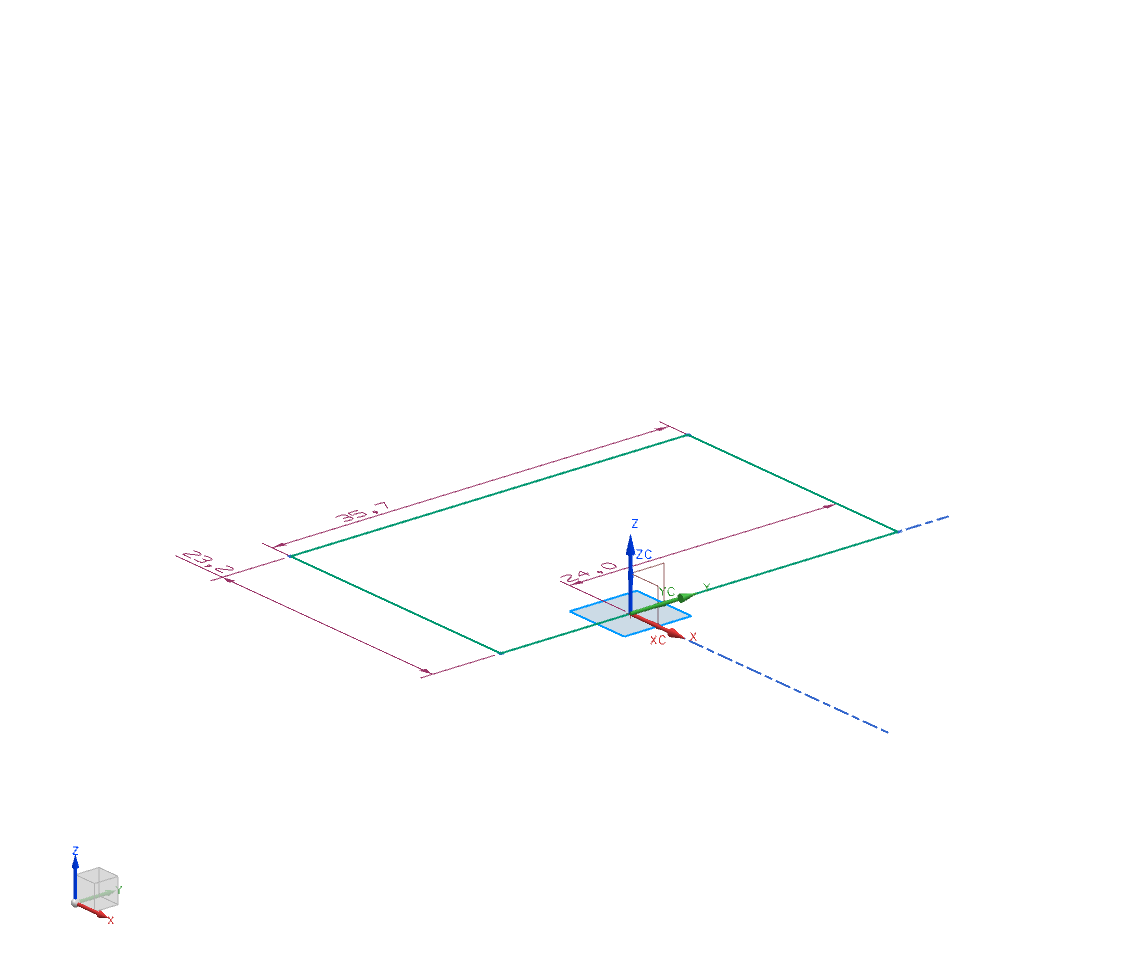

Now you can see your sketch within the Part
Navigator
. Double-click on
Sketch (1) "Sketch_000" to open the sketch you just created. (figure
"Sketch view"). Now you can select any measurement and edit it. When you want to
switch to a sketch view in Task Environment, you have to click
. (Note the small arrow
on the lower left of the icon!)
If you want to start sketch mode directly in
Task Environment, choose Sketch in Task Environment
.
On the following pages sketches are always viewed in Task Environment!
