4.1.2.1 Extrude (Translation)

Open the item dik, if you created it previously, and save it as extruded according to the naming convention. If you did not create this model, create a model named extruded and add a random sketch (closed curve) to it.

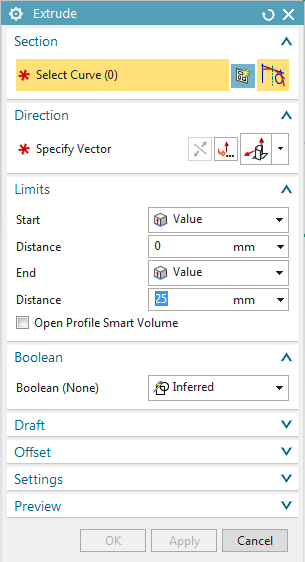

Choose Extrude alt. The window Extrude pops up, in which you can access every option offered by this feature. (figure "Extrude")

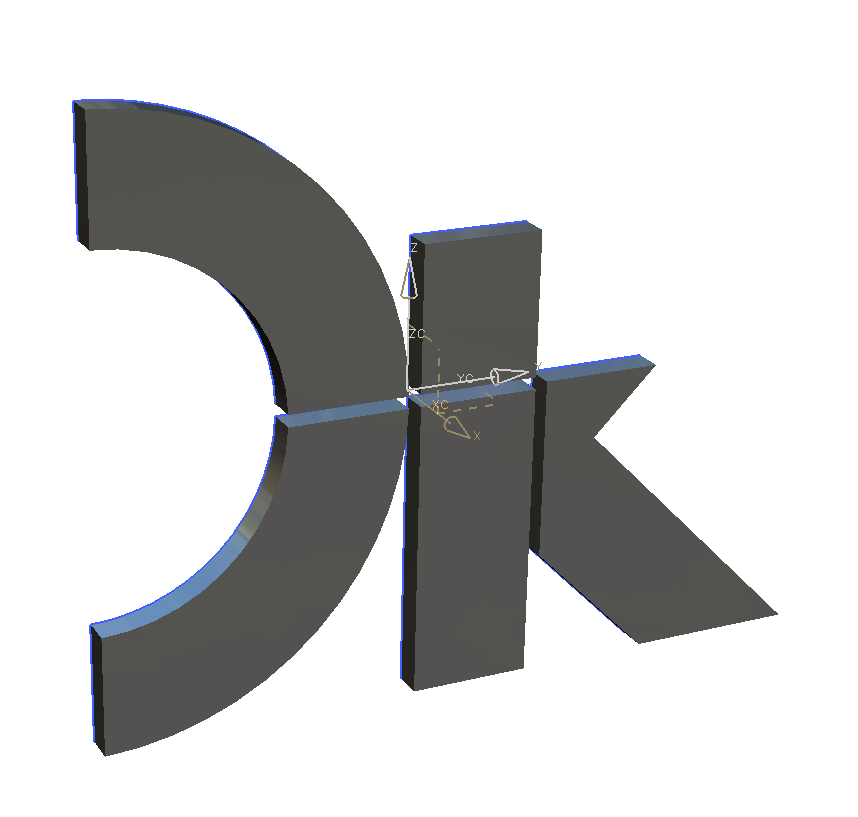

Mark the contour of the DIK-logo or the sketch you just created. A preview of the body will be rendered, and you have to enter a start and end distance for extruding. Enter 0mm as Start and  5mm as End and confirm by clicking OK. (figure "DIK extruded")
