7.2.1 Assembly Drawing "Rolle"

You first need the model ubg_rolle_tpd.

The assembly can be found in Teamcenter. The owner is uebung_tpd.

---



Save the model as usual with "Save as new Item" to create a copy in your home folder, which you have writing permission to.

Then create a specification with the name ubg_rolle_schnitt_dwg and the following format:

• Frame Size: A3-DIK
• Scale: 1:1

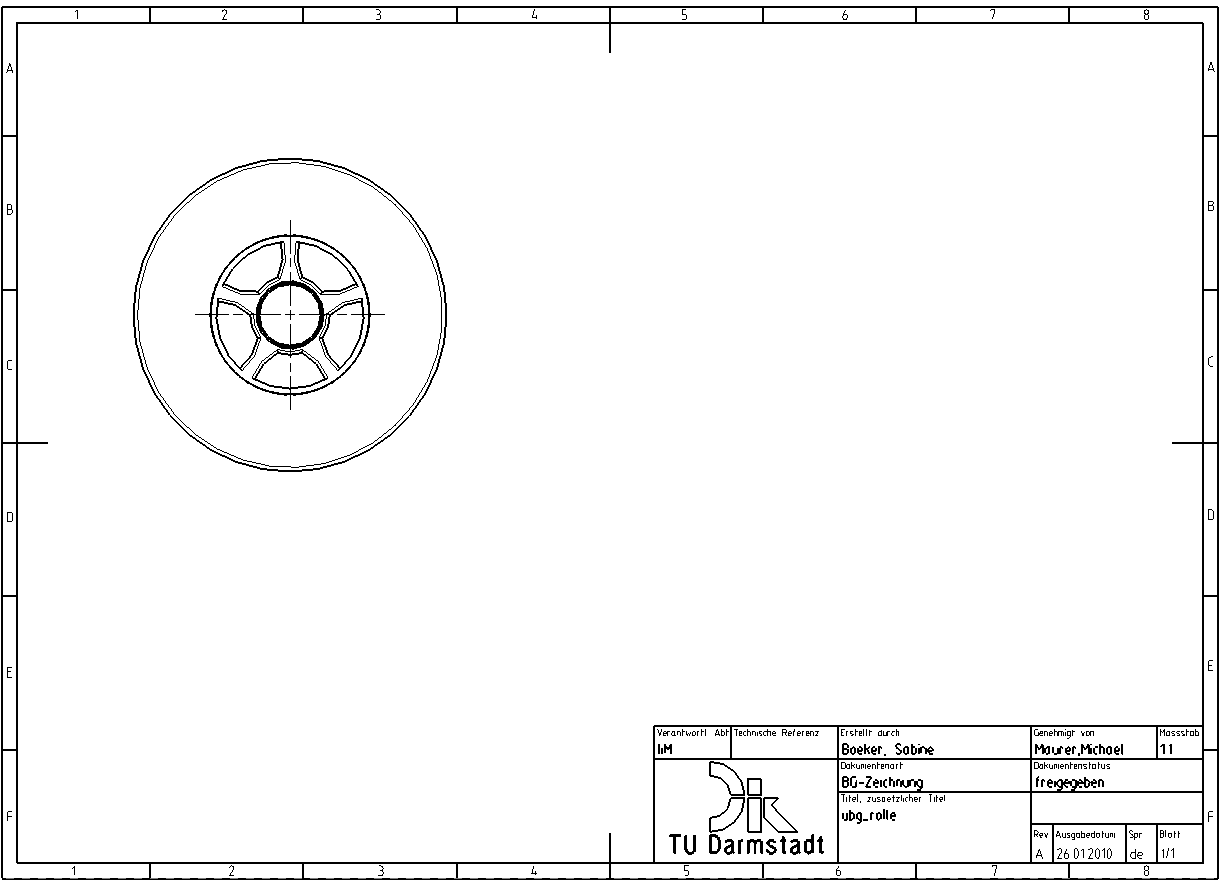

Then derive the basic view according to the figure (see figure "Basic view Rolle").
