In section views, center lines of geometry elements may not be displayed automatically. In this case it is necessary to insert them manually.
Open the specification bg_scooter_dwg and switch to drawing mode.
To insert centerlines, in the menu Centerline, under Insert -> Centerline (see figure "Centerline Dropdown") there are the three following important functions:
- Center Mark
- 3D Centerline
- 2D Centerline
Select the function 3D Centerline and mark the front sides of the respective shaft.

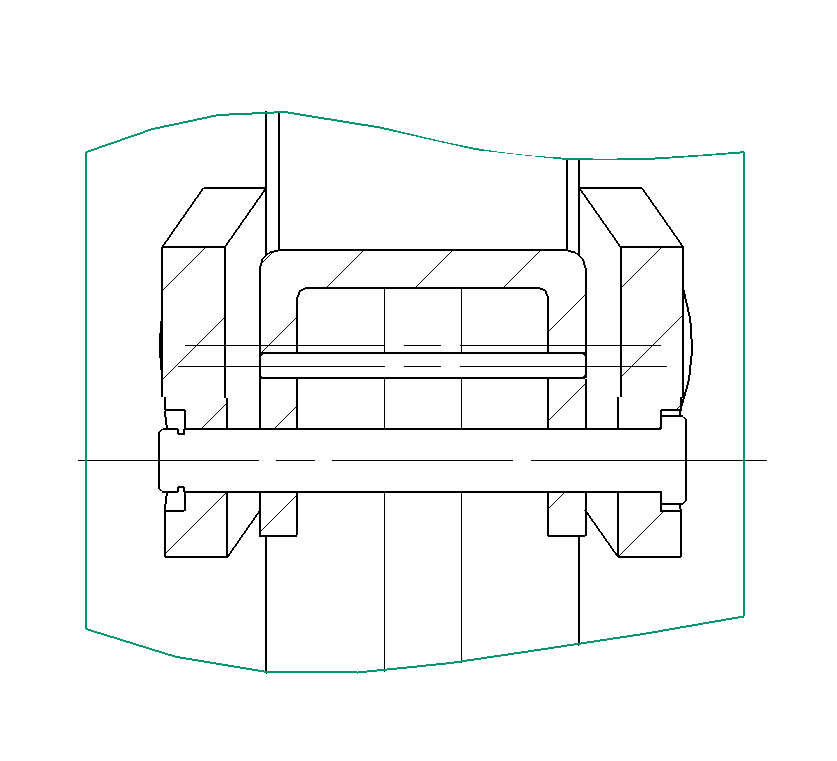

Your drawing should now look like the following figure (see figure "Centerlines").
