In order to assemble the Mindstorms®-robot, you need some prefabricated parts which we provide in Teamcenter.
You can find these individual parts in Teamcenter under:
Owning User: uebung_bg
It is not recommended to additionally save the finished parts in your directory in Teamcenter. Otherwise, for example, it is possible that changes in the design of a given part won't affect the part you assembled, because the copy you created would be obsolete (and therefore the advantages of the database structure would be made undone).
Make sure that you load all parts with "Entire Part" (see figure "Entire Part") so that you can also use their datum geometries.

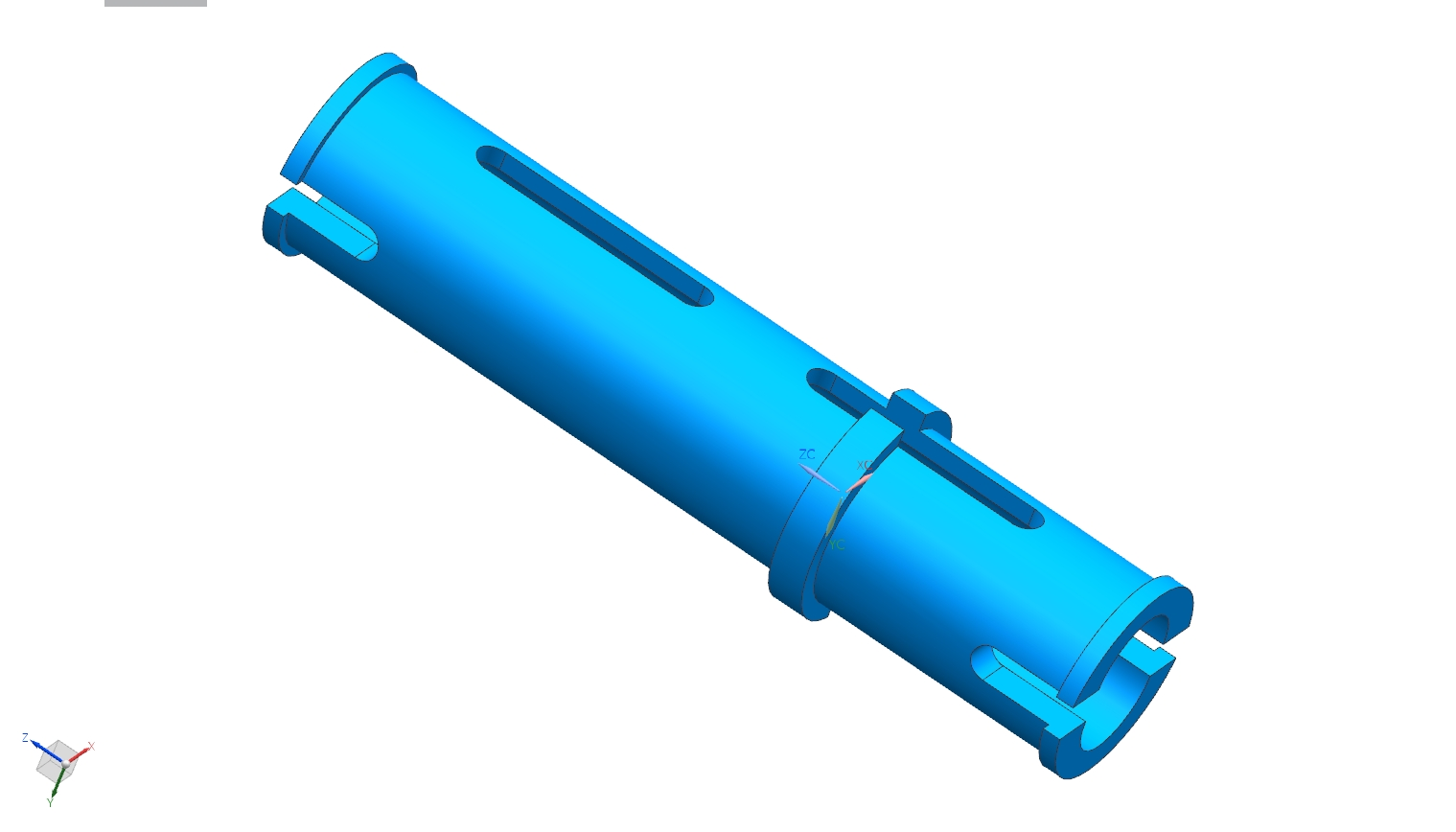

- Steckverbinder_lang (see figure "Steckverbinder_lang")

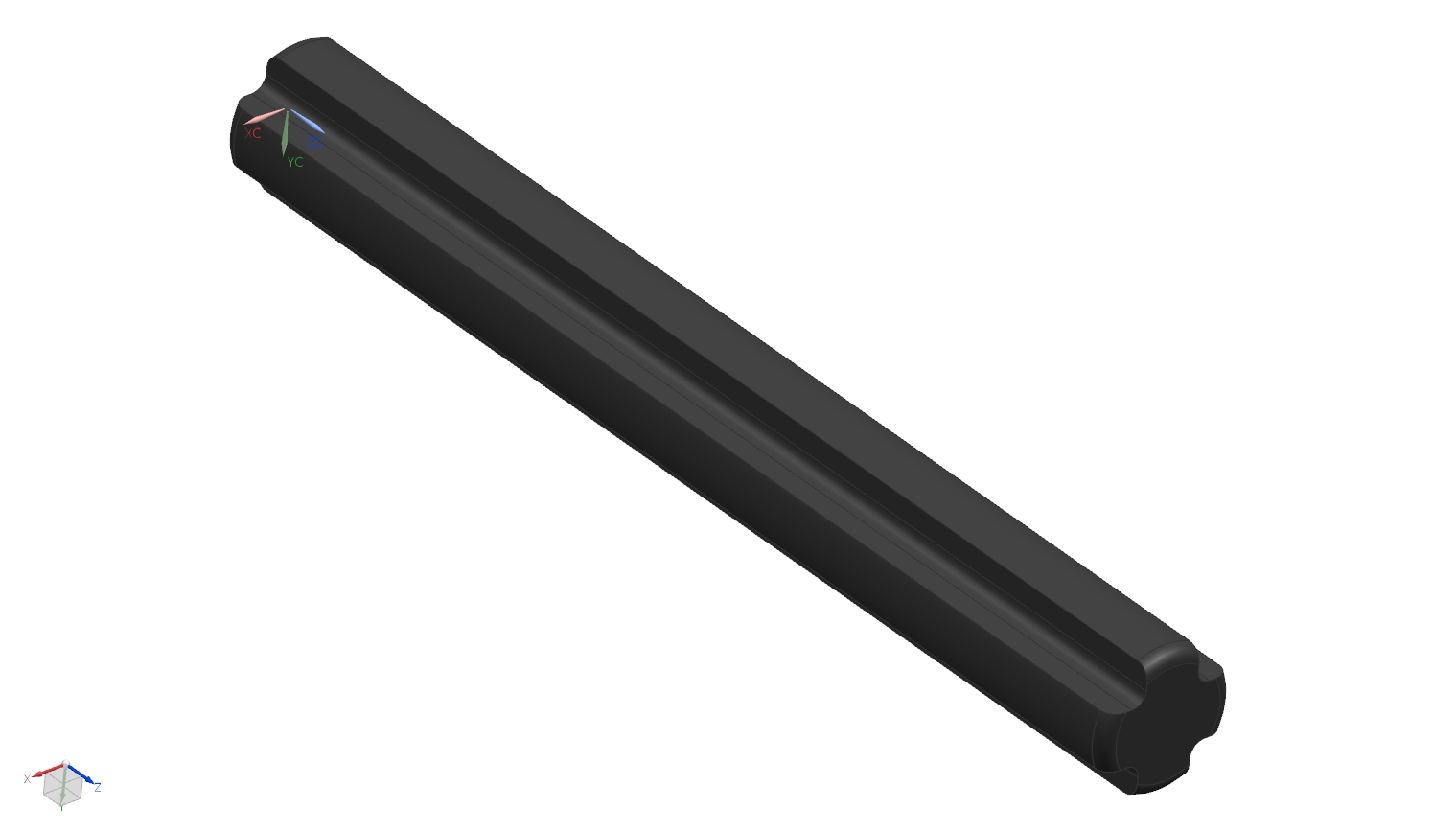

- 5er_Stange (see figure "5er_Stange")

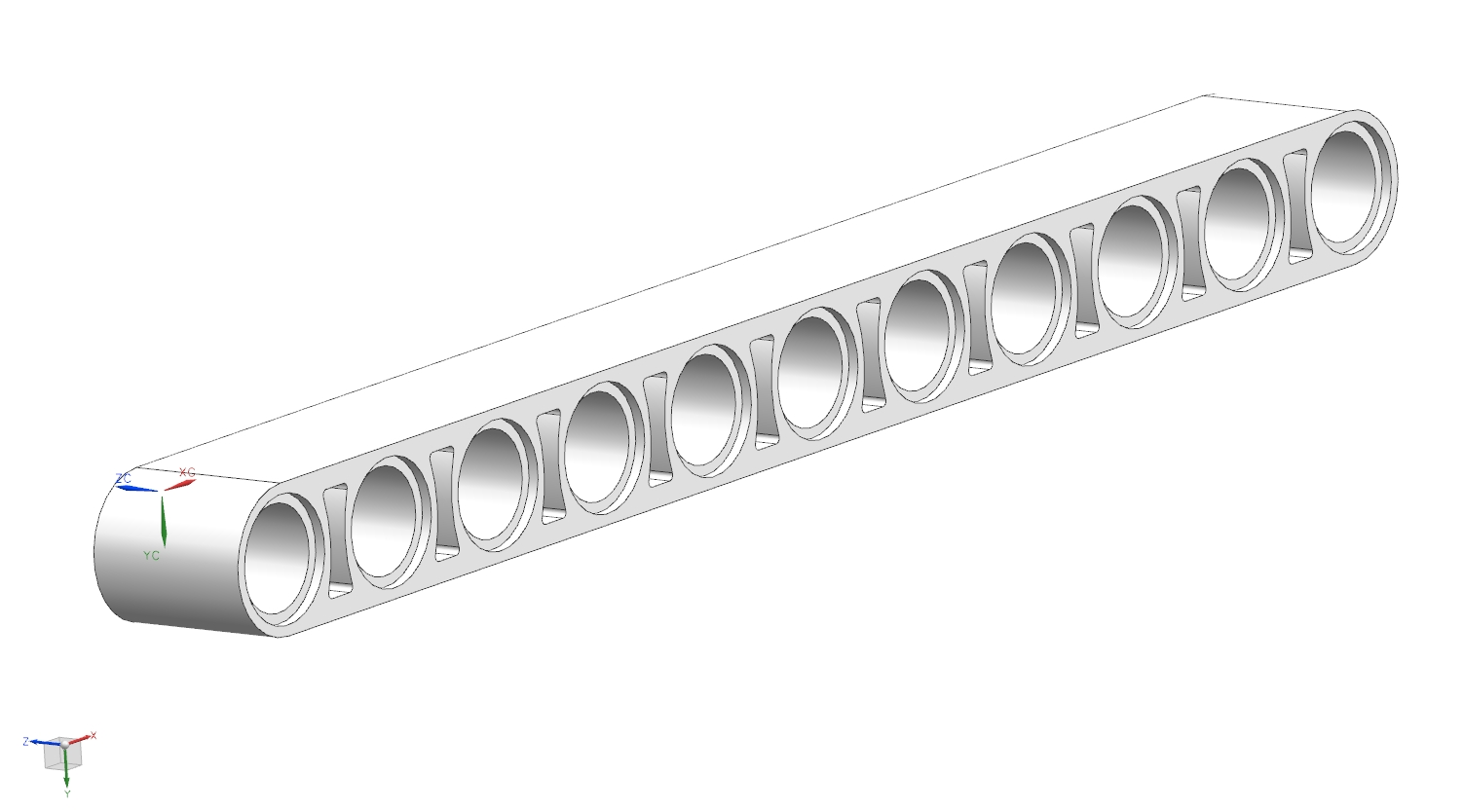

- 11er_Balken (see figure "11er_Balken")

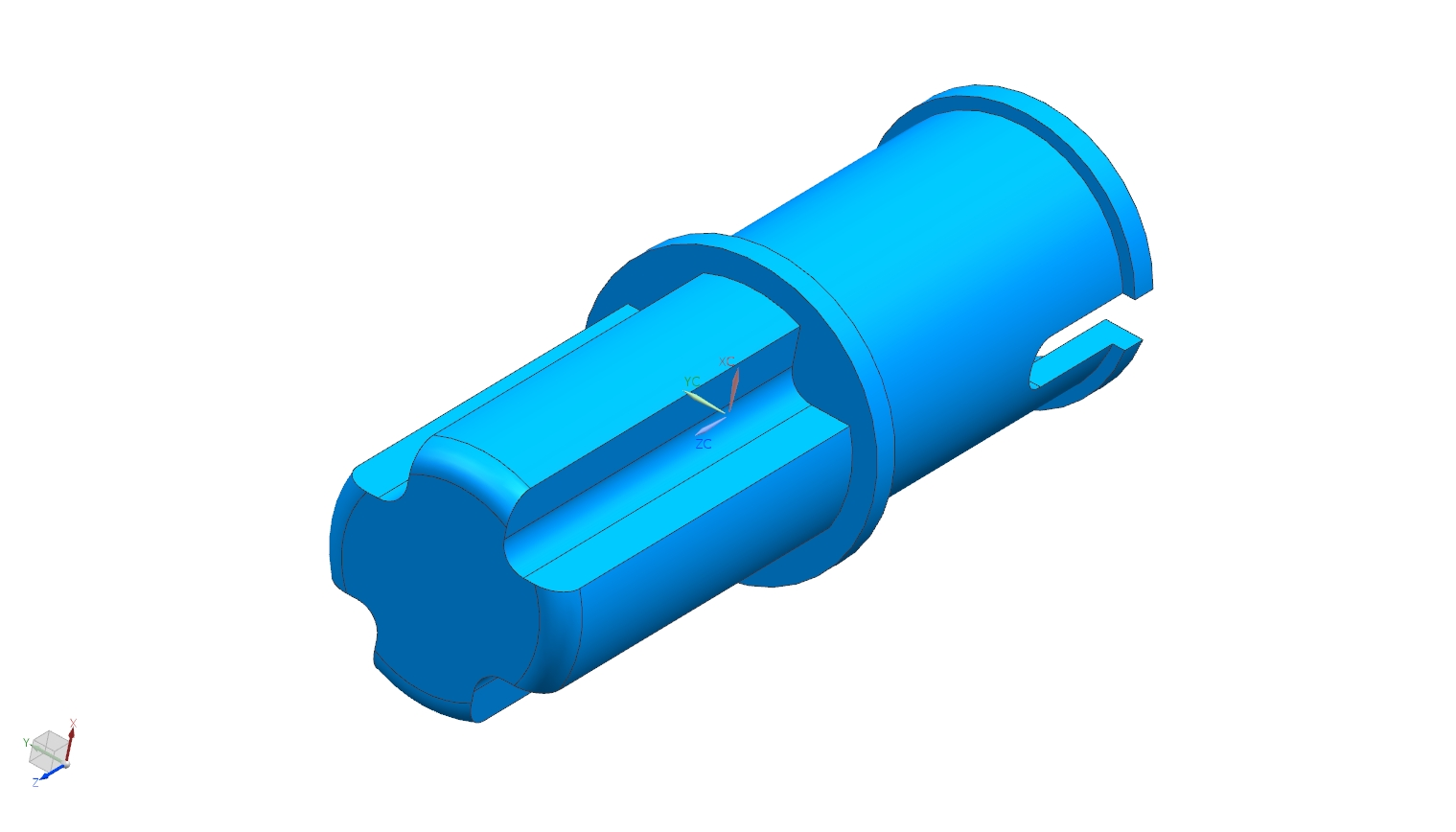

- Steckverbinder_Stange (see figure "Seckverbinder_Stange")
- UBG_Sensorhinten (see figure "ubg_sensor_hinten")
- UBG_Sensorhinten_gesamt (see figure "ubg_sensor_hinten_gesamt")

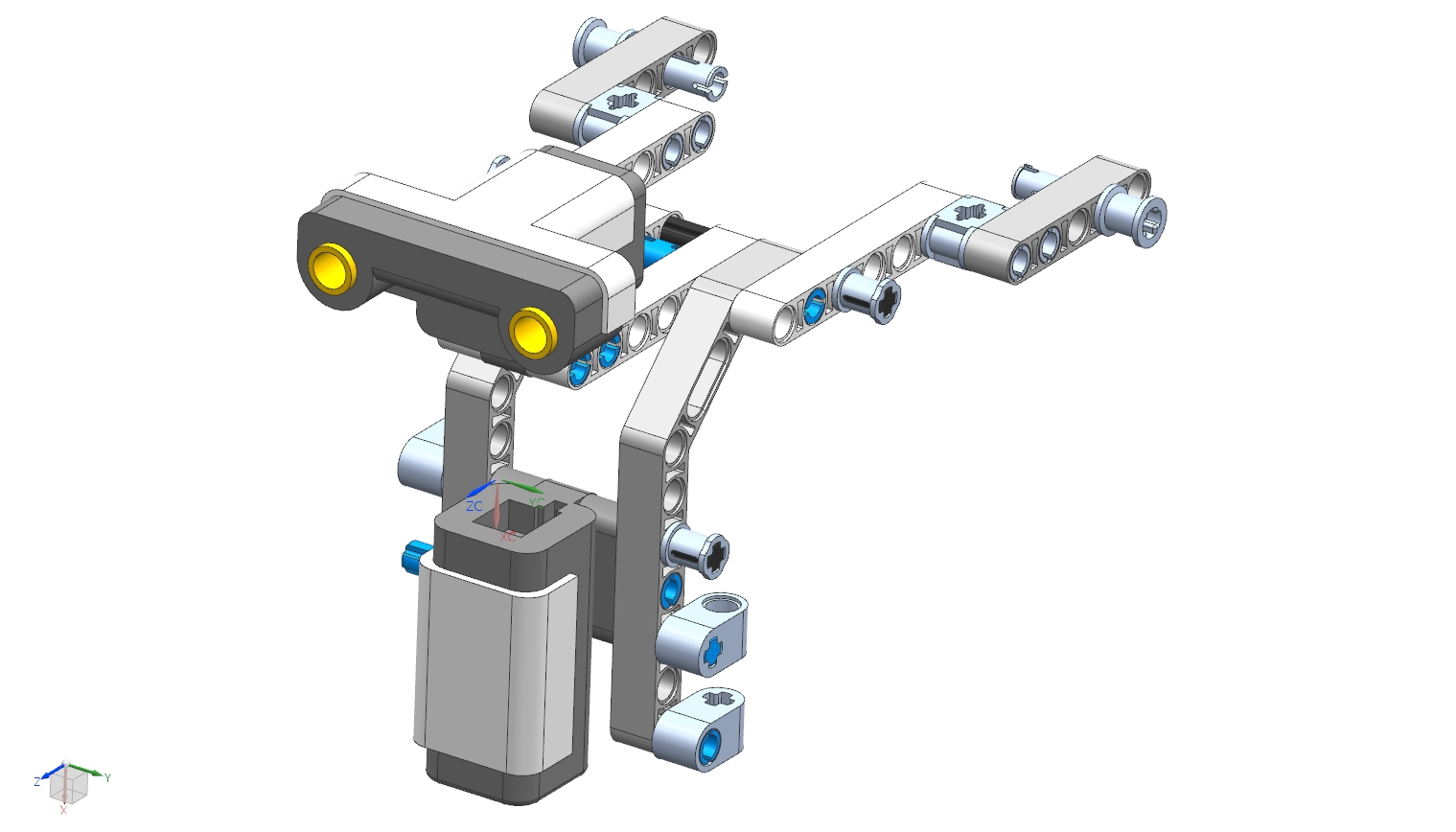

ubg_augen (see figure "ubg_augen")
The subassembly ubg_augen, contains of the following subassembly:
ubg_sensor_ultraschall (see figure "UBG_sensor_ultraschall")
- sensor_ultraschall_gehaeuse
- sensor_ultraschall_koerper
- (...)
ubg_sensor_rgb
- bodyrgb
- (...)
- 5er_Balken
- Steckverbinder_Stange (see figure "Steckverbinder_Stange")
- Doppel_Steckverbinder
- 9er_Stange
- Aufsteckhuelse_breit
- (...)
