7.1.1.1 Creating Basic and Projected Views

---



Deriving the drawing with the Creation Wizard

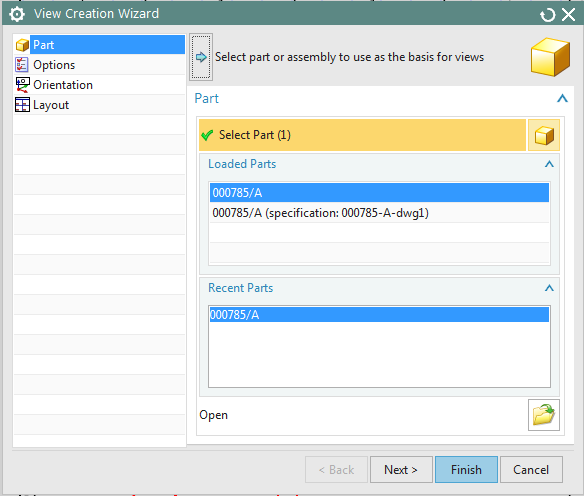

After entering drawing mode, NX will now automatically open the View Creation Wizard (see figure "View Creation Wizard") to help you create the part drawing. In four steps, you can make and adjust the basic settings for the drawing.

Note:

If the View Creation Wizard does not open, you can use the Command Finder to find and execute it. You can also find the View Creation Wizard icon in the Drafting ribbon.

You will now be guided through the following menu items:

• Part: If you have opened an assembly, you can select here whether an individual part or the entire assembly is to be displayed in the drawing.

• Options: Make sure that drawings are to be drawn up in standard scales. Check the scale that NX automatically selects. If this is not standard-compliant, set "View Boundary" to Manual, uncheck "Auto-Scale to Fit" and select a standard scale from the drop-down menu (we have chosen "5:1" in our example). To show hidden lines, select -------- under "Process Hidden Lines" in the drop-down menu instead of Invisible and in the second field ——— 0.13 mm instead of Original. You may need to check the "Process Hidden Lines" option. You can also select whether to display centerlines or not. Under Preview Style, you can determine how your item or assembly is displayed in the preview. It is a good idea to select Hidden Wireframe to get a realistic preview of the positioning.
• Orientation: Here you can select the basic view. In this example we have chosen "Top".
• Layout: To specify all dimensions of an individual part or assembly, it is usually necessary to display multiple views. Here you can select which views are displayed on the drawing. Create another projected view of links by selecting "Left". The arrangement is automatic. The distribution on the drawing sheet is displayed in the preview. If you want to change the arrangement manually, select "Manual" instead of "Automatic" under Placement.

When you have made all the settings, close the window with a click on Finish.

Your drawing should now look like the one shown in the illustration (see figure "View from left").

If you want to edit or replace the views, this cannot be done via the wizard. In this case, proceed as described in the section "Manual Derivation of Drawing" (see below).



Manual Derivation of Drawing

Compared to the View Creation Wizard, manually deriving a drawing in NX offers more design freedom. To derive a drawing manually, proceed as follows.



Deriving the Base View

Close the View Creation Wizard without creating a drawing and open the Base View menu by choosing Insert -> View -> Base. NX is now in the mode for creating the basic view. It offers you different options for the views and the scale, as well as a preview of the current view of the part.

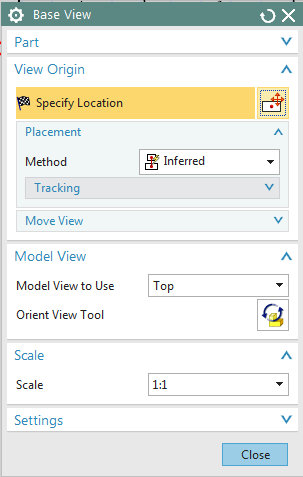

Figure (see figure "Base View") shows the ribbon Base View, which is structured as follows:



Then select the correct scale and place the basic view with LMB on the left side of the drawing surface. In this example, the "Top" view and the 5:1 scale are used.

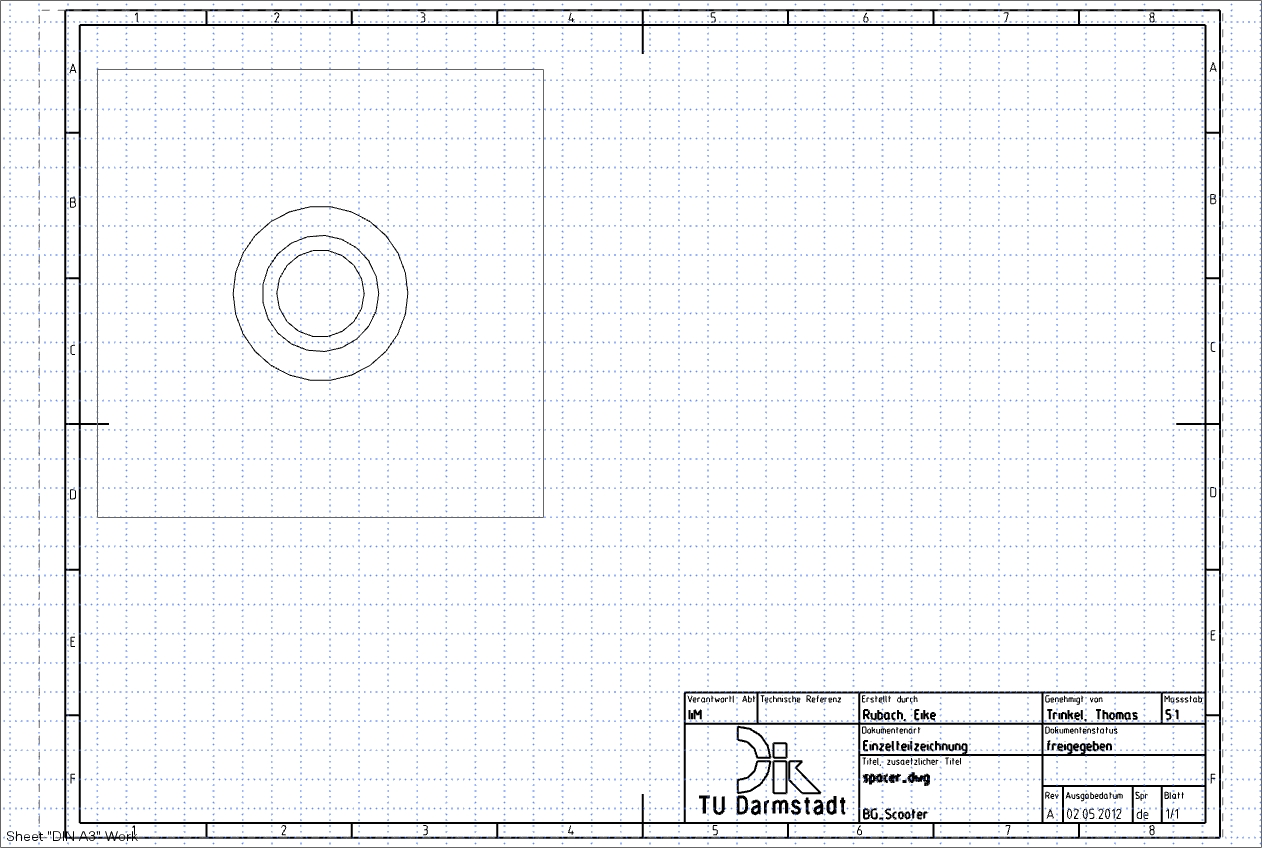

Your drawing should now look like the figure "base view". (figure "Base view")

Note:

In technical drawings, it is to ensure that as many views as necessary and as few as possible are displayed. The main view should be the one that shows most of the details.



Deriving the Projected View

After you have placed the base view, NX switches to the mode for projected views and the Projected View window appears.

Note:

If you want to call up the window again afterwards, click on the button Projected View

Now you can derive further views of the component according to the projection rule.

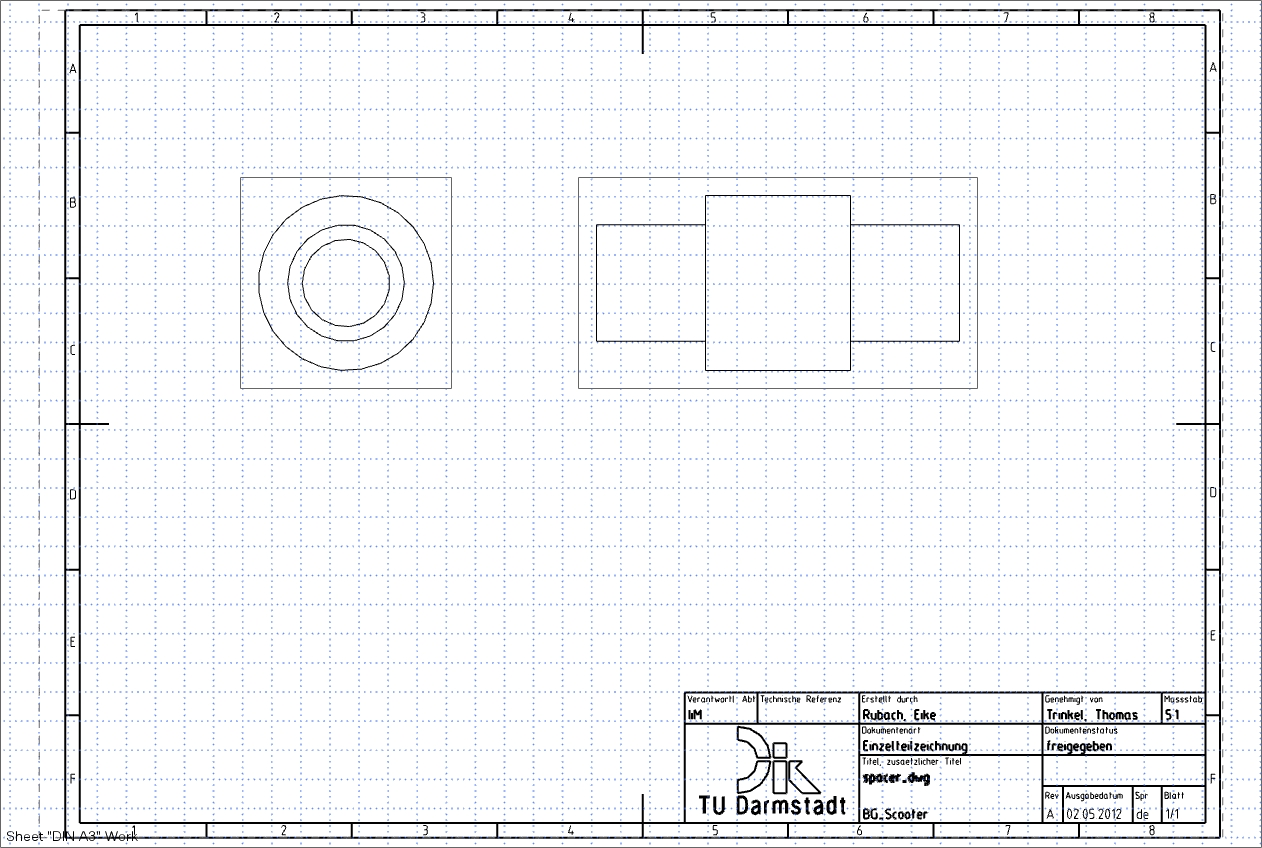

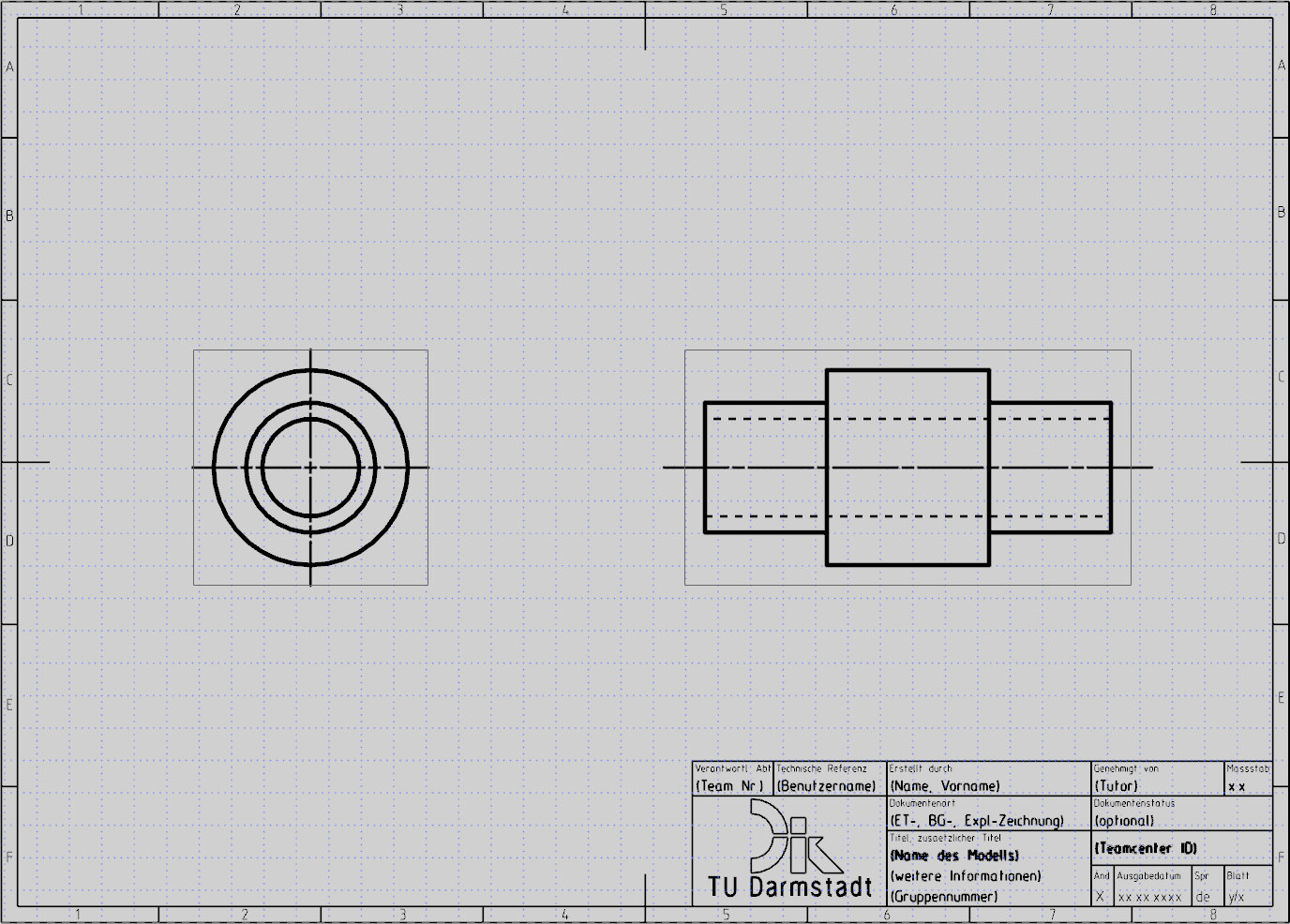

For the second view, project it to the right so that you get an orthogonal view from the left. Your drawing should now look like the following figure (see figure "View from left").

Press the Esc key or the middle mouse button on a free area to abort the process.

Note:

In each drawing there is only one base view. All other views are projected views. This has the advantage of automatically projecting in the correct projection direction and the orthogonality matches. The base view is the most important view because it serves as a reference view for the other derived views. Therefore, it makes sense to carefully consider the selection of the basic view. Inserting the basic view must always be the first step! All other functions are derived from the basic view.

Other functions

Hide Frame

If you want to hide the frames around the individual views, proceed as follows:

Preferences -> Drafting. Now select the tab View in the Drafting Preferenced menu and select the submenu Workflow.

Remove the check mark under Border in front of the option: Display

Adjust frame

If the frame should cut off your drawing, it is possible to adjust it automatically.

To do this, right-click on the frame of the view and select Boundary.

In the Drop-Down-List, change the entry to Automatic Rectangle and confirm the selection with OK.
The red Anchor Point doesn't need to be taken into account.



Hide Grid

If you want to hide the grid, proceed as follows:

In the Part Navigator, use the RMT to click Drawing and deselect the option Grid. (see figure "Hide Grid")



Delete Views

To delete individual views, you must select them by clicking the frame with the LMB and then select Delete or press the Entf key.



Derive a new view

If you want to derive a new or another projected view from an existing base view, select the base view and then click Projected View .

When you derive the views, NX automatically generates the centerlines.

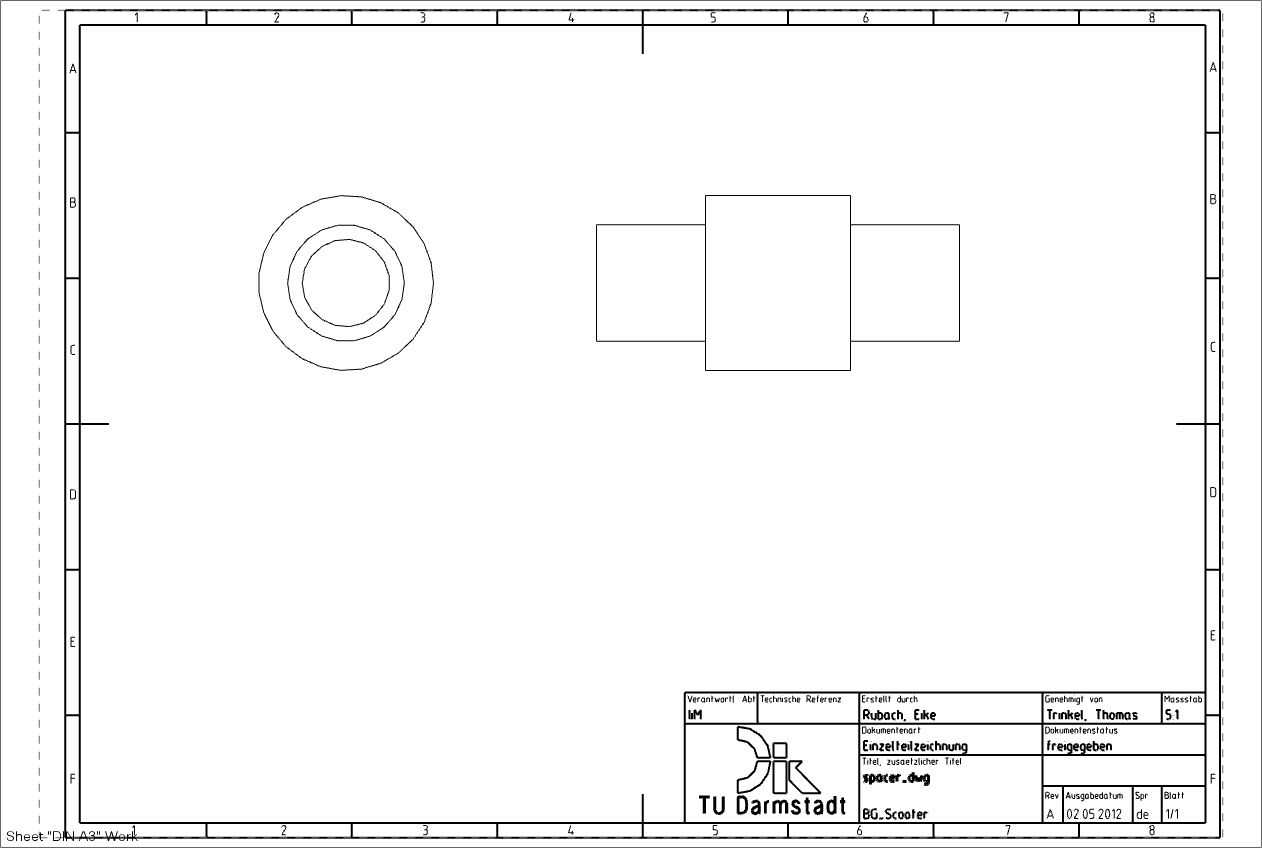

By clicking and you can delete them. (see figure "View without Grid, Frame and Centerline ")



Change view name

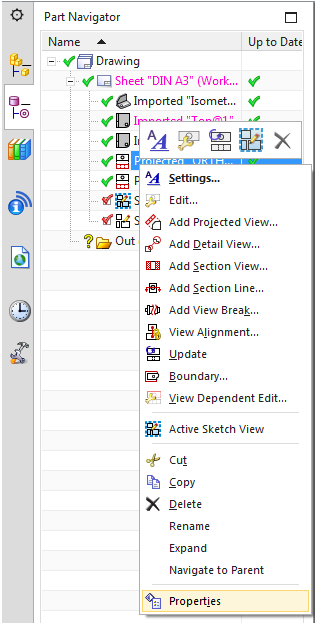

After a right click on the desired view in the Part Navigator, the menu item Properties can be selected. (see figure "Derived View in Part Navigator")

Here you can change the view name in the Name input field of the General tab page, in e. g:

• Basic view
• Side view
• Sectional view
• Detail view
• etc.

This will make it easier for you to assign the view names to the views later on if you have several views on a drawing.
