Simulation of production systems and processes using Tecnomatix Plant Simulation 11
The first network
Next create a new model (see figure 1). Left-click on the icon (1), select all required objects for the material flow simulation (2) und confirm with “OK” (3). A selection of the available elements are explained within course of this tutorial.

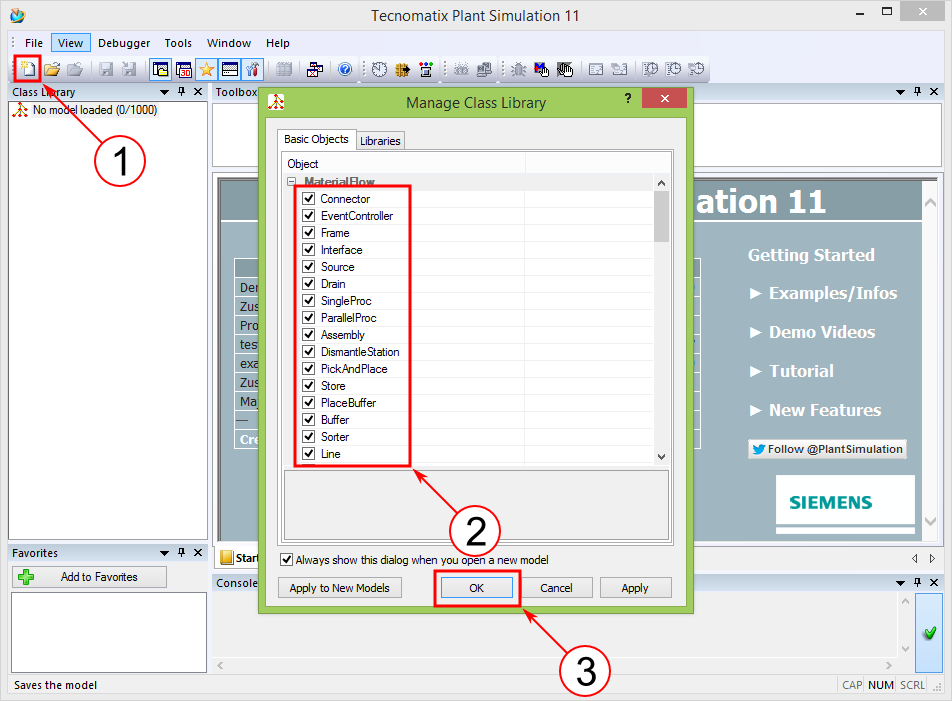

Figure 1: Manage class library
In case more or different objects are needed, available object can be selected or deselected at any time. Chose the menu entry “File > Manage Class Library…” to open a dialogue for managing available objects (see figure 2). There you can edit your object selection.

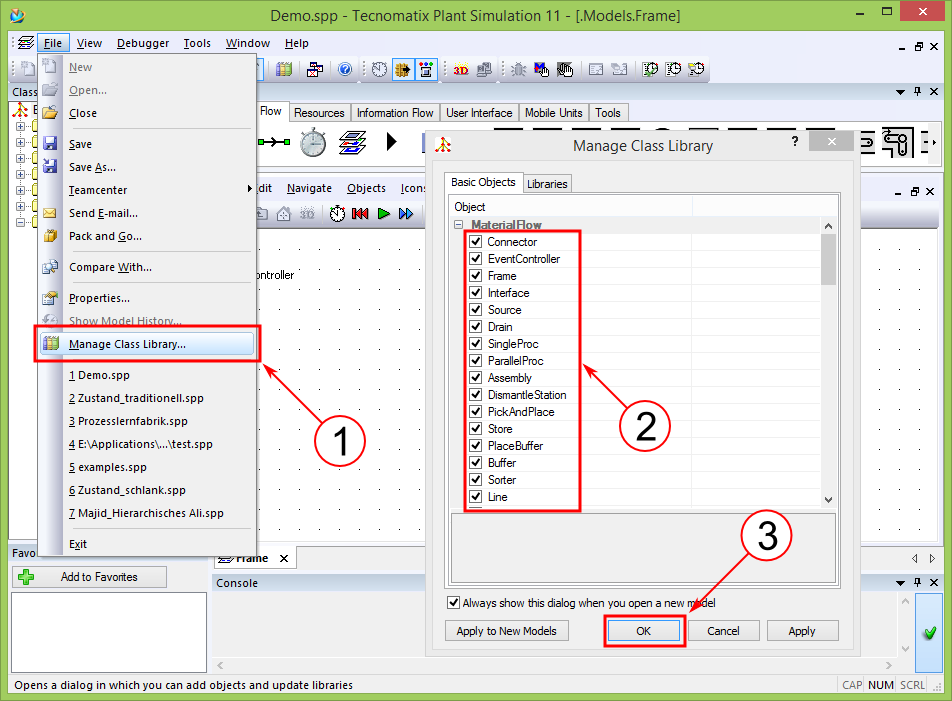

Figure 2: Edit class library
